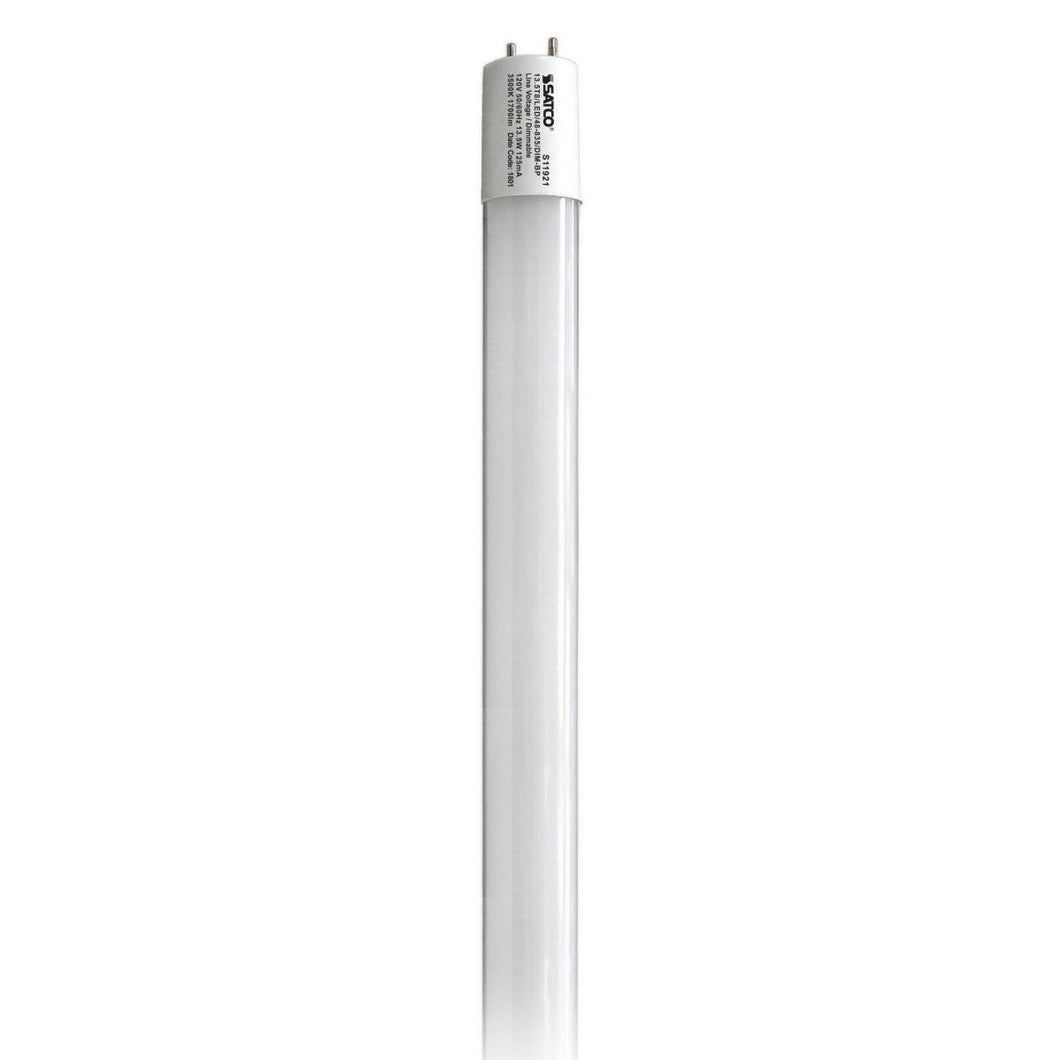

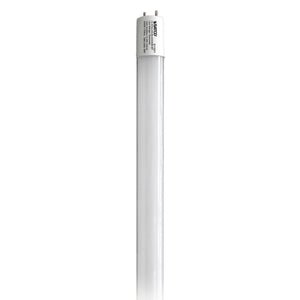

13.5 watt T8 LED; 3500K; Medium Bi Pin base; 50000 Average rated hours; 1700 Lumens; Dimmable; Type B; Ballast Bypass; Single Ended Wiring
General
| Status | Active |
| Watts | 13.5 |
| Volts | 120V |
| Ballast Type | Type B |
| Shape | T8 |
| Base | Medium Bi Pin |
| ANSI Base | G13 |
| Nominal Length | 48 |
| Finish | Frosted |
| CCT (Kelvin) | 3500 |
| Temperature | Neutral White |
| CRI | 82 |
| Lumens | 1700 |
| Beam Spread | 220 |
| Dimmable | Yes Dimmable |
| Hours Rated | 50000 |
| Lamp Type | Linear |
| Technology | LED |
Electrical
| Watts | 13.5 |
| Volts | 120V |
| Ballasting Requirements | Ballast Bypass; Direct wire 120V line voltage; No ballast or external driver required |
| Ballast Type | Type B |
| CCT (Kelvin) | 3500 |
| Temperature | Neutral White |
| CRI | 82 |
| Lumens | 1700 |
| Beam Spread | 220 |
| Dimmable | Yes Dimmable |
| Power Factor | 0.9 |
| Hours Rated | 50000 |
| Operating Temperature | -20C (-4F) to a maximum of +45C (+113F) |
Physical
| MOL | 48 |
| MOD | 1 |
| Nominal Length | 48 |
| Shape | T8 |
| Base | Medium Bi Pin |
| ANSI Base | G13 |
| Finish | Frosted |
| Lens Finish | Frosted |
| Lens Material | Glass |
| Housing Color | White |
Additional Information
| Additional Info | All glass tube |
| Tube Guard Use | Approved for use with tube guards |
| Installation Notes | Install only in non-shunted lampholders |
| Warranty | 5 Year Limited - T8 LED Bulbs - Ballast Bypass |
Compliance
| Safety Listing | cULus Classified |
| Location Rating | Damp |
| Energy Star | No |
| DLC Approved | Yes |
| DLC ID | PL699Z8XDJKU |
| CEC Status | Lawful for sale in California |
| RoHS Compliant | Yes |
| FCC Compliant | Yes |
| NSF Approved | Yes - Approved |
Packaging
| Each UPC | 045923119217 |
| Each Quantity | 1 |
| Each Length (in.) | 48.00 |
| Each Width (in.) | 1.00 |
| Each Height (in.) | 1.00 |
| Each Weight (lb.) | 0.50 |
| Each Cube (CuFt.) | 0.0269 |
| Pack Type | Sleeve |
| Inner Quantity | 0 |
| Inner Length (in.) | 0.00 |
| Inner Width (in.) | 0.00 |
| Inner Height (in.) | 0.00 |
| Inner Weight (lb.) | 0.00 |
| Inner Cube (CuFt.) | 0.0000 |
| Case UPC | 10045923119214 |
| Case Quantity | 25 |
| Case Length (in.) | 49.00 |
| Case Width (in.) | 5.90 |
| Case Height (in.) | 5.90 |
| Case Weight (lb.) | 13.00 |
| Case Cube (CuFt.) | 0.9572 |
