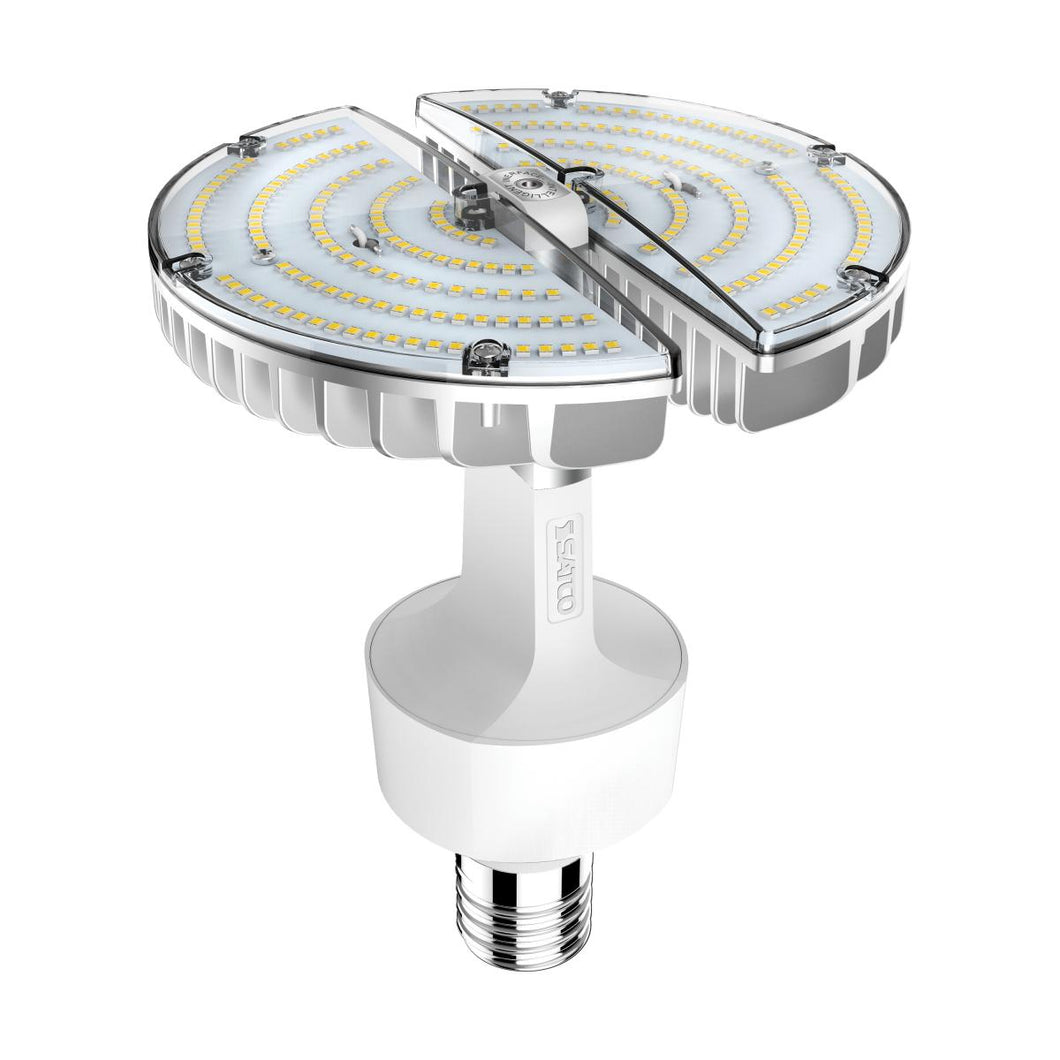

70W LED HID Replacement; 2700K; Mogul extended base; 100-277V
General
| Status | Active |
| Watts | 70 |
| HID Equivalent | 250 |
| Volts | 100V-277V |
| Base | Mogul Extended |
| ANSI Base | EX39 |
| Finish | Clear |
| CCT (Kelvin) | 2700 |
| Temperature | Warm White |
| CRI | 80+ |
| Lumens | 10500 |
| Beam Spread | 360 |
| Dimmable | Dimmable Only with Optional WiFi Module 80-954 |
| Hours Rated | 50000 |
| Lamp Type | LED HID |
| Technology | LED |
Electrical
| Watts | 70 |
| HID Equivalent | 250 |
| Volts | 100V-277V |
| Working Voltage | Direct wire range voltage 100-277V |
| Operating Frequency | 50/60 Hz |
| CCT (Kelvin) | 2700 |
| Temperature | Warm White |
| CRI | 80+ |
| Lumens | 10500 |
| Candlepower | 3377 |
| Beam Spread | 360 |
| Dimmable | Dimmable Only with Optional WiFi Module 80-954 |
| Dimming Type | Smart |
| Power Factor | >0.9 |
| Hours Rated | 50000 |
| Burning Position | Universal |
| Surge Protection | Built-in surge protection - 4KV |
| Operating Temperature | -30C (-22F) to a maximum of +60C (140F) |
Physical
| MOL | 11.59 |
| MOD | 7 |
| Base | Mogul Extended |
| ANSI Base | EX39 |
| Finish | Clear |
| Lens Finish | Clear |
| Lens Material | Polycarbonate (PC) |
| Housing Color | White |
| Photocell | Multiple Optional Sensors Available |
| Weight (lb.) | 2.43 |
Additional Information
| Additional Info | |80-954 - Dimmable via WiFi accessory|80-955 - Hi-Pro Motion Sensor / PIR|80-956 - Hi-Pro Photocell|80-957 - Hi-Pro Motion Sensor / MW |
| Enclosure Rating | Enclosed Rated Lamp |
| Rated For Enclosed Fixture | Yes |
| IP Rating | IP64 |
| Warranty | 5 Year Limited - Hi-Pro |
Compliance
| Safety Listing | cULus Classified |
| Location Rating | Damp |
| Energy Star | No |
| DLC Approved | Yes |
| DLC ID | PLNPMHW0GBGY;PL648D7BIF1D |
| CEC Status | Lawful for sale in California |
| RoHS Compliant | Yes |
| FCC Compliant | Yes |
| SDS Sheet | LED Lamp |
Packaging
| Each UPC | 045923131202 |
| Each Quantity | 1 |
| Each Length (in.) | 7.95 |
| Each Width (in.) | 4.65 |
| Each Height (in.) | 12.80 |
| Each Weight (lb.) | 3.09 |
| Each Cube (CuFt.) | 0.2655 |
| Pack Type | Box |
| Inner Quantity | 0 |
| Inner Length (in.) | 0.00 |
| Inner Width (in.) | 0.00 |
| Inner Height (in.) | 0.00 |
| Inner Weight (lb.) | 0.00 |
| Inner Cube (CuFt.) | 0.0000 |
| Case UPC | 10045923131209 |
| Case Quantity | 8 |
| Case Length (in.) | 26.38 |
| Case Width (in.) | 16.54 |
| Case Height (in.) | 9.84 |
| Case Weight (lb.) | 27.16 |
| Case Cube (CuFt.) | 2.4093 |
