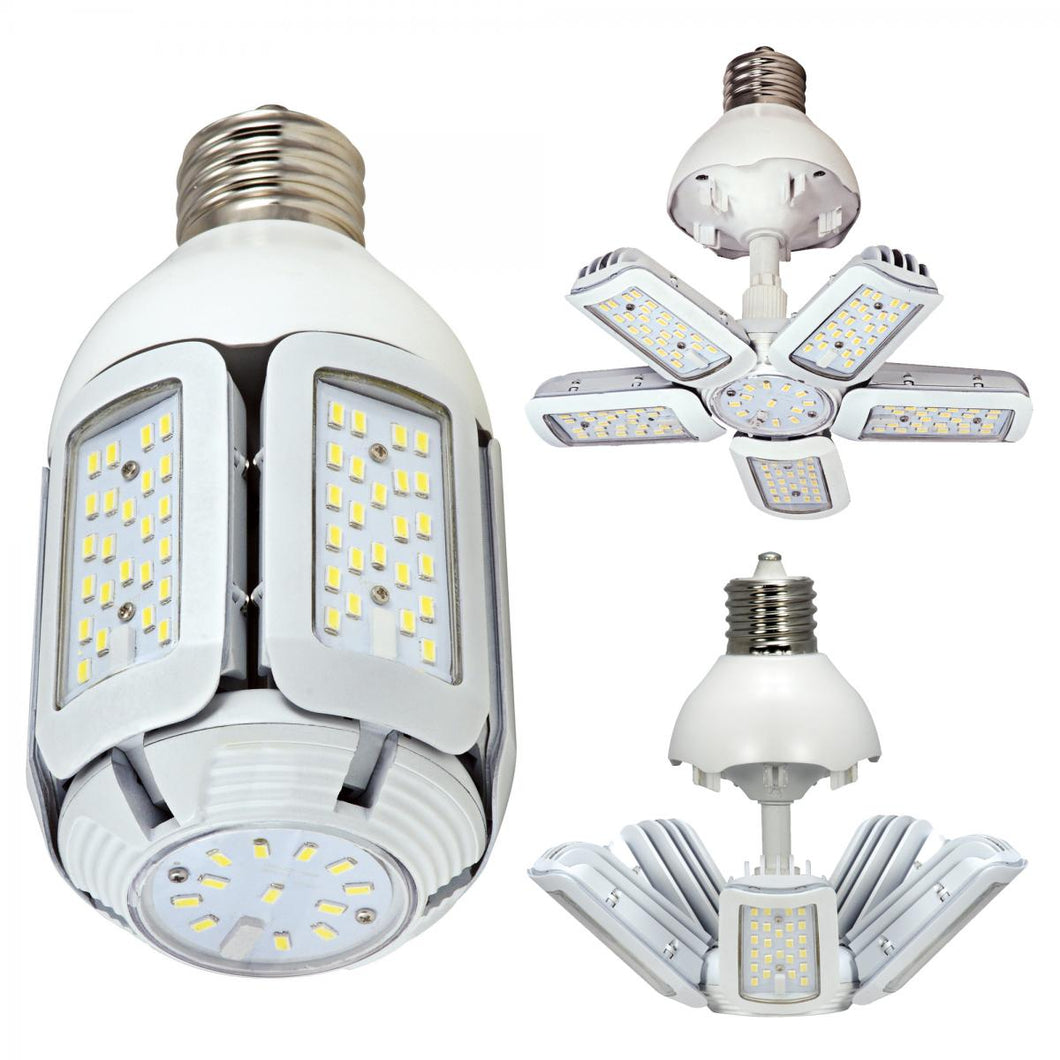

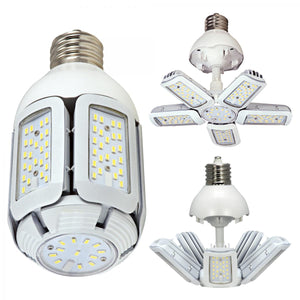

60W LED HID Replacement; 5000K; Mogul extended base; Adjustable beam angle; 100-277V
general
| Status | Active |
| Watts | 60 |
| Incandescent Equivalent | 500 |
| Fluorescent Equivalent | 85 |
| HID Equivalent | 250 |
| Volts | 100V-277V |
| Shape | Corncob |
| Base | Mogul Extended |
| ANSI Base | EX39 |
| Finish | Clear |
| CCT (Kelvin) | 5000 |
| Temperature | Natural Light |
| CRI | 80+ |
| Lumens | 7800 |
| Beam Spread | 360 |
| Dimmable | Non-Dimmable |
| Hours Rated | 50000 |
| Lamp Type | Corncob |
| Technology | LED |
| Min Compartment Size | Length 8.27 in. Width 9.25 in. Depth 9.25 in. |
| Ballasting Requirements | Direct wire range voltage 100-277V |
Electrical
| Watts | 60 |
| Incandescent Equivalent | 500 |
| Fluorescent Equivalent | 85 |
| HID Equivalent | 250 |
| Volts | 100V-277V |
| Ballasting Requirements | Direct wire range voltage 100-277V |
| Operating Frequency | 50/60 Hz |
| CCT (Kelvin) | 5000 |
| Temperature | Natural Light |
| CRI | 80+ |
| Lumens | 7800 |
| Beam Spread | 360 |
| Dimmable | Non-Dimmable |
| Dimming Type | N/A |
| Power Factor | >0.9 |
| Hours Rated | 50000 |
| Burning Position | Up or Down Operation Only |
| Surge Protection | Built-in surge protection - 2.5KV |
| Operating Temperature | -25C (-13F) to a maximum of +45C (+113F) |
Physical
| MOL | 8.56 |
| MOD | 3.81 |
| Shape | Corncob |
| Base | Mogul Extended |
| ANSI Base | EX39 |
| Finish | Clear |
| Housing Color | White |
| Weight (lb.) | 2.05 |
Additional Information
| Additional Info | Width 360 deg 3.8 in.; Width 270 deg 8.2 in.; Width 180 deg 9.3 in. Approved for totally enclosed fixtures; Base up or base down operation; For outdoor & indoor use; Emits no UV light / Contains no Mercury (Hg) |
| Enclosure Rating | Enclosed Rated Lamp |
| Min Compartment Size | Length 8.27 in. Width 9.25 in. Depth 9.25 in. |
| Rated For Enclosed Fixture | Yes |
| IP Rating | IP65 |
| Warranty | 5 Year Limited - Hi-Pro |
Compliance
| Safety Listing | cULus |
| Location Rating | Wet |
| Energy Star | No |
| DLC Approved | Yes |
| DLC ID | PLEWO5S0QZ4H |
| CEC Status | Lawful for sale in California |
| RoHS Compliant | Yes |
| SDS Sheet | LED Lamp |
Packaging
| Each UPC | 045923297526 |
| Each Quantity | 1 |
| Each Length (in.) | 4.96 |
| Each Width (in.) | 4.96 |
| Each Height (in.) | 8.98 |
| Each Weight (lb.) | 2.45 |
| Each Cube (CuFt.) | 0.1240 |
| Pack Type | Box |
| Inner UPC | 20045923297520 |
| Inner Quantity | 6 |
| Inner Length (in.) | 15.43 |
| Inner Width (in.) | 10.43 |
| Inner Height (in.) | 9.45 |
| Inner Weight (lb.) | 15.87 |
| Inner Cube (CuFt.) | 0.8534 |
| Case UPC | 10045923297523 |
| Case Quantity | 12 |
| Case Length (in.) | 21.46 |
| Case Width (in.) | 16.14 |
| Case Height (in.) | 10.43 |
| Case Weight (lb.) | 34.52 |
| Case Cube (CuFt.) | 2.0273 |
