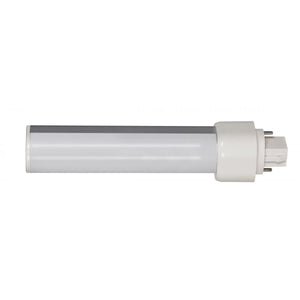

9W LED PL 2-Pin; 4000K;1000 Lumens; G24d base; 50000 Average rated hours; 120 Deg. beam spread; Horizontal; Type B; Ballast Bypass
General
| Status | Active |
| Watts | 9 |
| Fluorescent Equivalent | See Notes |
| Volts | 120V-277V |
| Ballast Type | Type B |
| Shape | PL |
| Base | 2-Pin |
| ANSI Base | G24d |
| Finish | Frosted |
| CCT (Kelvin) | 4000 |
| Temperature | Cool White |
| CRI | 82 |
| Lumens | 1000 |
| Beam Spread | 120 |
| Dimmable | Non-Dimmable |
| Hours Rated | 50000 |
| Lamp Type | PL |
| Burning Position | Horizontal Operation |
| Technology | LED |
Electrical
| Watts | 9 |
| Fluorescent Equivalent | See Notes |
| Volts | 120V-277V |
| Ballasting Requirements | Ballast By-pass; Direct wire voltage range 100-277V |
| Ballast Type | Type B |
| Operating Frequency | 50/60 Hz |
| CCT (Kelvin) | 4000 |
| Temperature | Cool White |
| CRI | 82 |
| Lumens | 1000 |
| Beam Spread | 120 |
| Dimmable | Non-Dimmable |
| Dimming Type | N/A |
| Hours Rated | 50000 |
| Burning Position | Horizontal Operation |
| Operating Temperature | -20C (-4F) to a maximum of +45C (+113F) |
Physical
| MOL | 6.63 |
| MOD | 1.09 |
| Shape | PL |
| Base | 2-Pin |
| ANSI Base | G24d |
| Finish | Frosted |
Additional Information
| Additional Info | In G24d (2-pin) sockets replaces 18 and 26 watt CFLs;|In G24q (4-pin) sockets replaces 13; 18; and 26 watt CFLs |
| Enclosure Rating | Enclosed Rated Lamp |
| Installation Notes | 2-pin LED lamps work in both 2-pin (magnetic) and 4-pin (electronic) sockets. |
| Warranty | 5 Year Limited - 10 hr per day |
Compliance
| Safety Listing | cULus Classified |
| Location Rating | Damp |
| Energy Star | No |
| CEC Status | Lawful for sale in California |
| RoHS Compliant | Yes |
| SDS Sheet | LED Lamp |
Packaging
| Each UPC | 045923085338 |
| Each Quantity | 1 |
| Each Length (in.) | 1.50 |
| Each Width (in.) | 1.50 |
| Each Height (in.) | 6.77 |
| Each Weight (lb.) | 0.26 |
| Each Cube (CuFt.) | 0.0085 |
| Pack Type | Box |
| Inner UPC | 20045923085332 |
| Inner Quantity | 10 |
| Inner Length (in.) | 8.00 |
| Inner Width (in.) | 3.30 |
| Inner Height (in.) | 7.09 |
| Inner Weight (lb.) | 0.00 |
| Inner Cube (CuFt.) | 0.1050 |
| Case UPC | 10045923085335 |
| Case Quantity | 50 |
| Case Length (in.) | 14.56 |
| Case Width (in.) | 8.66 |
| Case Height (in.) | 9.00 |
| Case Weight (lb.) | 13.00 |
| Case Cube (CuFt.) | 0.6368 |
