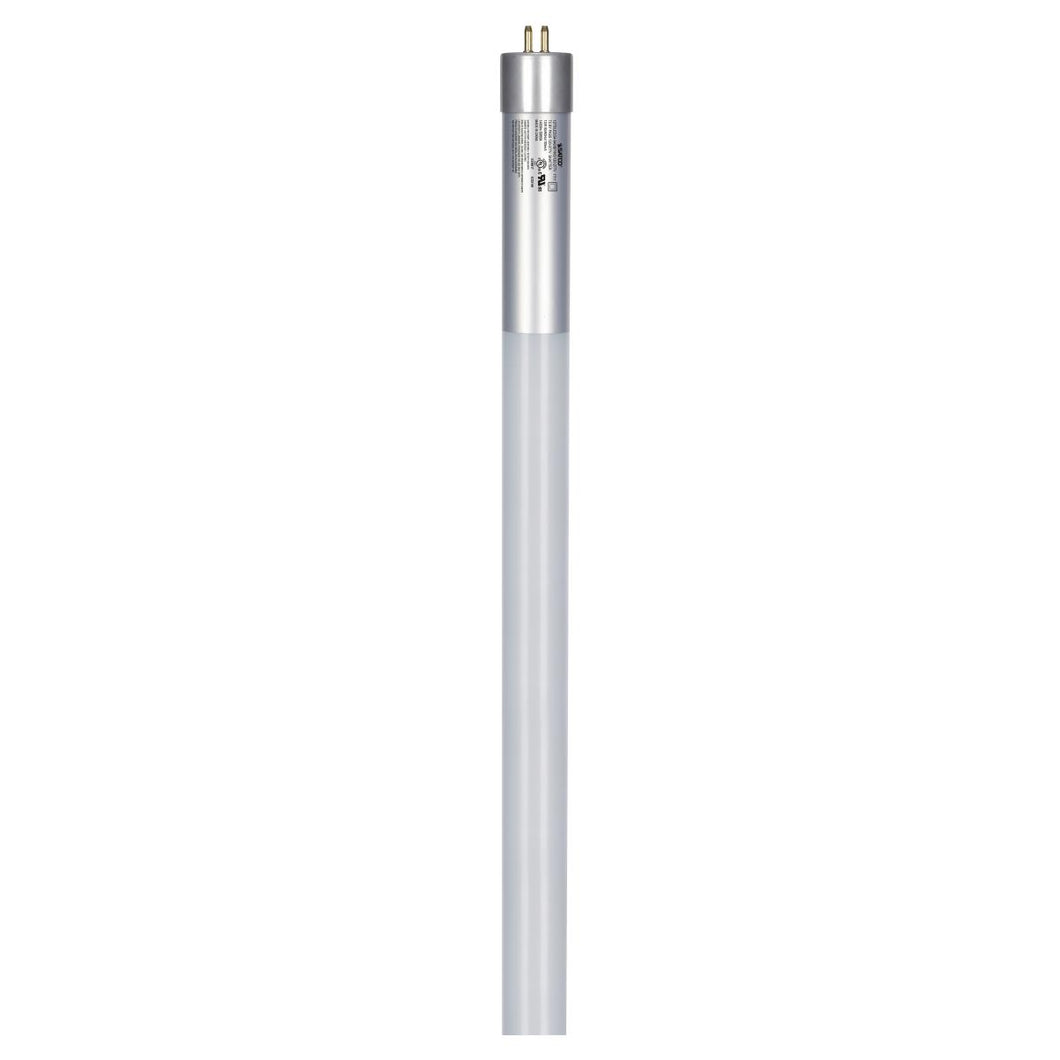

12W T5 LED; Miniature bi-pin base; 4000K; 50000 Average rated hours; 1450 Lumens; 120-277V; Type B; Ballast Bypass; Single Ended Wiring
General
| Status | Active |
| Watts | 12 |
| Volts | 120V-277V |
| Ballast Type | Type B |
| Shape | T5 |
| Base | Miniature Bi Pin |
| ANSI Base | G5 |
| Nominal Length | 24 |
| Finish | Frosted |
| CCT (Kelvin) | 4000 |
| Temperature | Cool White |
| CRI | 83 |
| Lumens | 1450 |
| Beam Spread | 240 |
| Dimmable | Non-Dimmable |
| Hours Rated | 50000 |
| Lamp Type | Linear |
| Technology | LED |
Electrical
| Watts | 12 |
| Volts | 120V-277V |
| Ballasting Requirements | Ballast Bypass |
| Ballast Type | Type B |
| Operating Frequency | 50/60 Hz |
| CCT (Kelvin) | 4000 |
| Temperature | Cool White |
| CRI | 83 |
| Lumens | 1450 |
| Beam Spread | 240 |
| Dimmable | Non-Dimmable |
| Dimming Type | N/A |
| Hours Rated | 50000 |
| Operating Temperature | -20C (-4F) to a maximum of +45C (+113F) |
Physical
| MOL | 24 |
| MOD | 0.88 |
| Nominal Length | 24 |
| Shape | T5 |
| Base | Miniature Bi Pin |
| ANSI Base | G5 |
| Finish | Frosted |
| Housing Color | Silver |
Additional Information
| Shatter-Proof Type | Yes |
| Warranty | 5 Year Limited - T5 LED Bulbs - Ballast Bypass |
Compliance
| Safety Listing | cULus Classified |
| Location Rating | Damp |
| Energy Star | No |
| CEC Status | Lawful for sale in California |
| RoHS Compliant | Yes |
| NSF Approved | Yes - Approved |
Packaging
| Each UPC | 045923086946 |
| Each Quantity | 1 |
| Each Length (in.) | 22.20 |
| Each Width (in.) | 0.80 |
| Each Height (in.) | 0.80 |
| Each Weight (lb.) | 0.20 |
| Each Cube (CuFt.) | 0.0080 |
| Pack Type | Sleeve |
| Inner Quantity | 0 |
| Inner Length (in.) | 0.00 |
| Inner Width (in.) | 0.00 |
| Inner Height (in.) | 0.00 |
| Inner Weight (lb.) | 0.00 |
| Inner Cube (CuFt.) | 0.0000 |
| Case UPC | 10045923086943 |
| Case Quantity | 25 |
| Case Length (in.) | 24.50 |
| Case Width (in.) | 5.20 |
| Case Height (in.) | 5.20 |
| Case Weight (lb.) | 8.50 |
| Case Cube (CuFt.) | 0.3718 |
