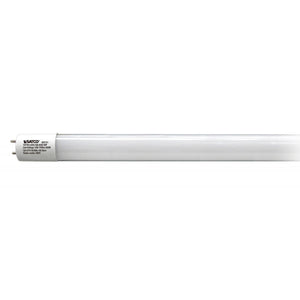

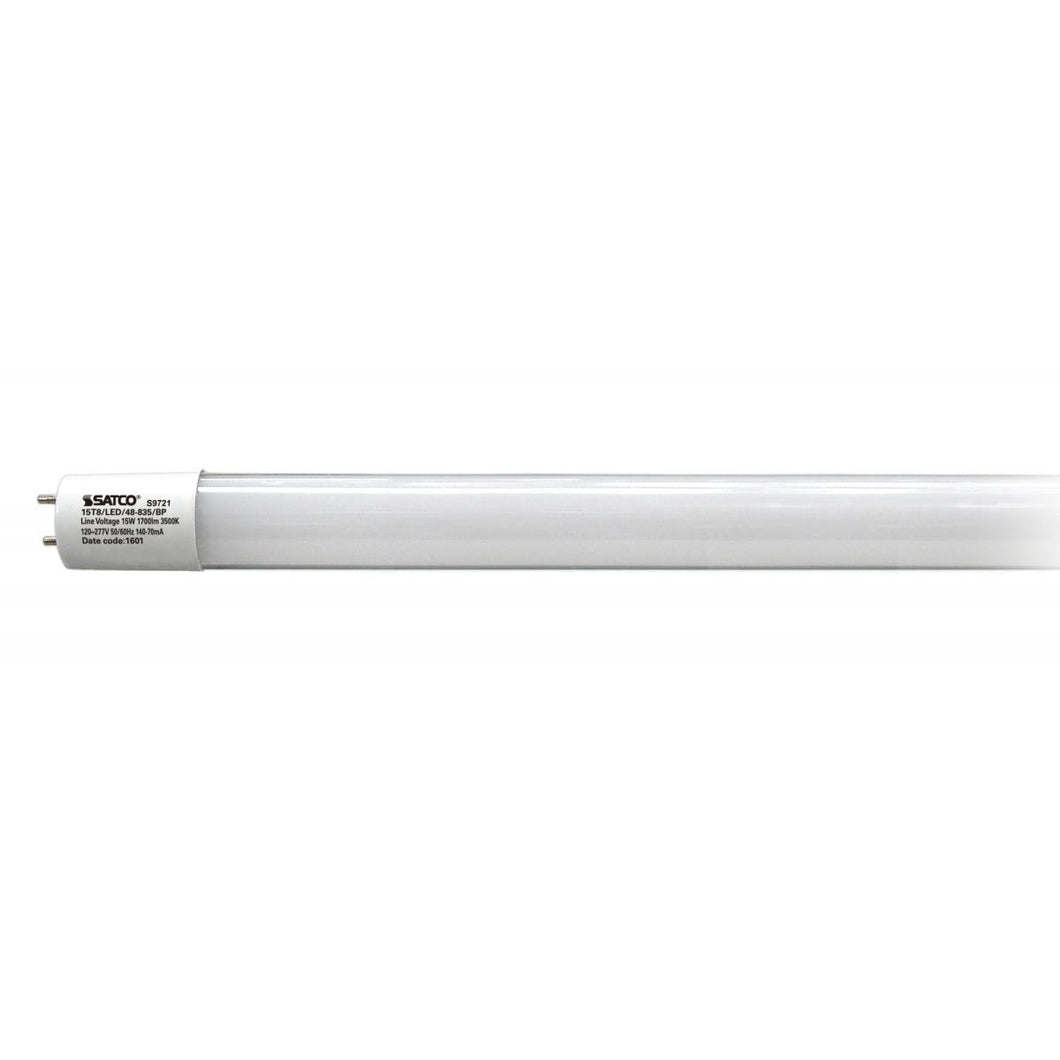

15W T8 LED; Medium bi-pin base; 3500K; 50000 Average rated hours; 1700 Lumens; Type B; Ballast Bypass; Single Ended Wiring
General
| Status | Active |
| Watts | 15 |
| Fluorescent Equivalent | 25-32 |
| Volts | 120V-277V |
| Ballast Type | Type B |
| Shape | T8 |
| Base | Medium Bi Pin |
| ANSI Base | G13 |
| Nominal Length | 48 |
| Finish | Gloss White |
| CCT (Kelvin) | 3500 |
| Temperature | Neutral White |
| CRI | 82 |
| Lumens | 1700 |
| Beam Spread | 230 |
| Dimmable | Non-Dimmable |
| Hours Rated | 50000 |
| Lamp Type | Linear |
| Technology | LED |
Electrical
| Watts | 15 |
| Fluorescent Equivalent | 25-32 |
| Volts | 120V-277V |
| Ballasting Requirements | Ballast Bypass |
| Ballast Type | Type B |
| Operating Frequency | 50/60 Hz |
| CCT (Kelvin) | 3500 |
| Temperature | Neutral White |
| CRI | 82 |
| Lumens | 1700 |
| Beam Spread | 230 |
| Dimmable | Non-Dimmable |
| Dimming Type | N/A |
| Power Factor | 0.9 |
| Hours Rated | 50000 |
| Operating Temperature | -20C (-4F) to a maximum of +45C (+113F) |
Physical
| MOL | 48 |
| MOD | 1 |
| Nominal Length | 48 |
| Shape | T8 |
| Base | Medium Bi Pin |
| ANSI Base | G13 |
| Finish | Gloss White |
Additional Information
| Warranty | 5 Year Limited - T8 LED Bulbs - Ballast Bypass |
Compliance
| Safety Listing | cULus |
| Location Rating | Damp |
| Energy Star | No |
| DLC Approved | Yes |
| DLC ID | PGMG5X1Y |
| CEC Status | Lawful for sale in California |
| RoHS Compliant | Yes |
Packaging
| Each UPC | 045923097218 |
| Each Quantity | 1 |
| Each Length (in.) | 48.43 |
| Each Width (in.) | 1.18 |
| Each Height (in.) | 1.18 |
| Each Weight (lb.) | 0.60 |
| Each Cube (CuFt.) | 0.0378 |
| Pack Type | Egg Crate |
| Inner Quantity | 0 |
| Inner Length (in.) | 0.00 |
| Inner Width (in.) | 0.00 |
| Inner Height (in.) | 0.00 |
| Inner Weight (lb.) | 0.00 |
| Inner Cube (CuFt.) | 0.0000 |
| Case UPC | 10045923097215 |
| Case Quantity | 10 |
| Case Length (in.) | 49.60 |
| Case Width (in.) | 8.30 |
| Case Height (in.) | 4.30 |
| Case Weight (lb.) | 6.40 |
| Case Cube (CuFt.) | 0.9934 |
