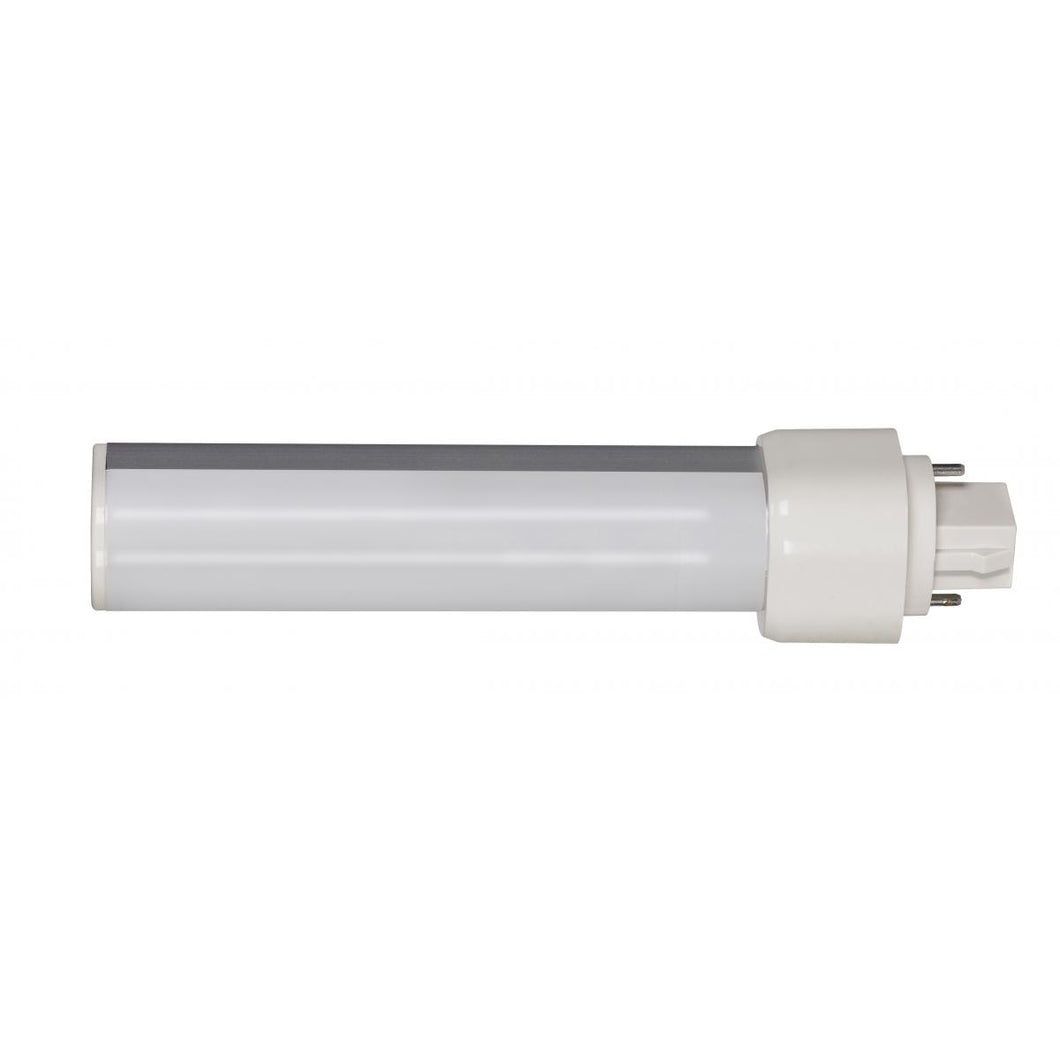

9W LED PL 2-Pin; 3500K; 850 Lumens; G24d base; 50000 Average rated hours; 120 Deg. beam spread; Type A; Ballast dependent
General
| Status | Active |
| Watts | 9 |
| Fluorescent Equivalent | 26 |
| Ballast Type | Type A |
| Shape | PL |
| Base | 2-Pin |
| ANSI Base | G24d |
| Finish | Frosted |
| CCT (Kelvin) | 3500 |
| Temperature | Neutral White |
| CRI | 82 |
| Lumens | 850 |
| Beam Spread | 120 |
| Dimmable | Non-Dimmable |
| Hours Rated | 50000 |
| Lamp Type | PL |
| Burning Position | Horizontal Operation |
| Technology | LED |
Electrical
| Watts | 9 |
| Fluorescent Equivalent | 26 |
| Ballasting Requirements | Ballast required |
| Ballast Type | Type A |
| CCT (Kelvin) | 3500 |
| Temperature | Neutral White |
| CRI | 82 |
| Lumens | 850 |
| Beam Spread | 120 |
| Dimmable | Non-Dimmable |
| Dimming Type | N/A |
| Hours Rated | 50000 |
| Burning Position | Horizontal Operation |
| Operating Temperature | -20C (-4F) to a maximum of +45C (+113F) |
Physical
| MOL | 6.63 |
| MOD | 1.09 |
| Shape | PL |
| Base | 2-Pin |
| ANSI Base | G24d |
| Finish | Frosted |
| Housing Color | White |
Additional Information
| Enclosure Rating | Enclosed Rated Lamp |
| Warranty | 5 Year Limited - 10 hr per day |
Compliance
| Safety Listing | cULus Classified |
| Location Rating | Damp |
| Energy Star | No |
| CEC Status | Lawful for sale in California |
| RoHS Compliant | Yes |
| SDS Sheet | LED Lamp |
Packaging
| Each UPC | 045923098550 |
| Each Quantity | 1 |
| Each Length (in.) | 1.50 |
| Each Width (in.) | 1.50 |
| Each Height (in.) | 6.80 |
| Each Weight (lb.) | 0.22 |
| Each Cube (CuFt.) | 0.0086 |
| Pack Type | Box |
| Inner UPC | 20045923098554 |
| Inner Quantity | 10 |
| Inner Length (in.) | 8.00 |
| Inner Width (in.) | 3.30 |
| Inner Height (in.) | 7.09 |
| Inner Weight (lb.) | 0.00 |
| Inner Cube (CuFt.) | 0.1050 |
| Case UPC | 10045923098557 |
| Case Quantity | 50 |
| Case Length (in.) | 14.50 |
| Case Width (in.) | 8.60 |
| Case Height (in.) | 9.00 |
| Case Weight (lb.) | 12.00 |
| Case Cube (CuFt.) | 0.6298 |
