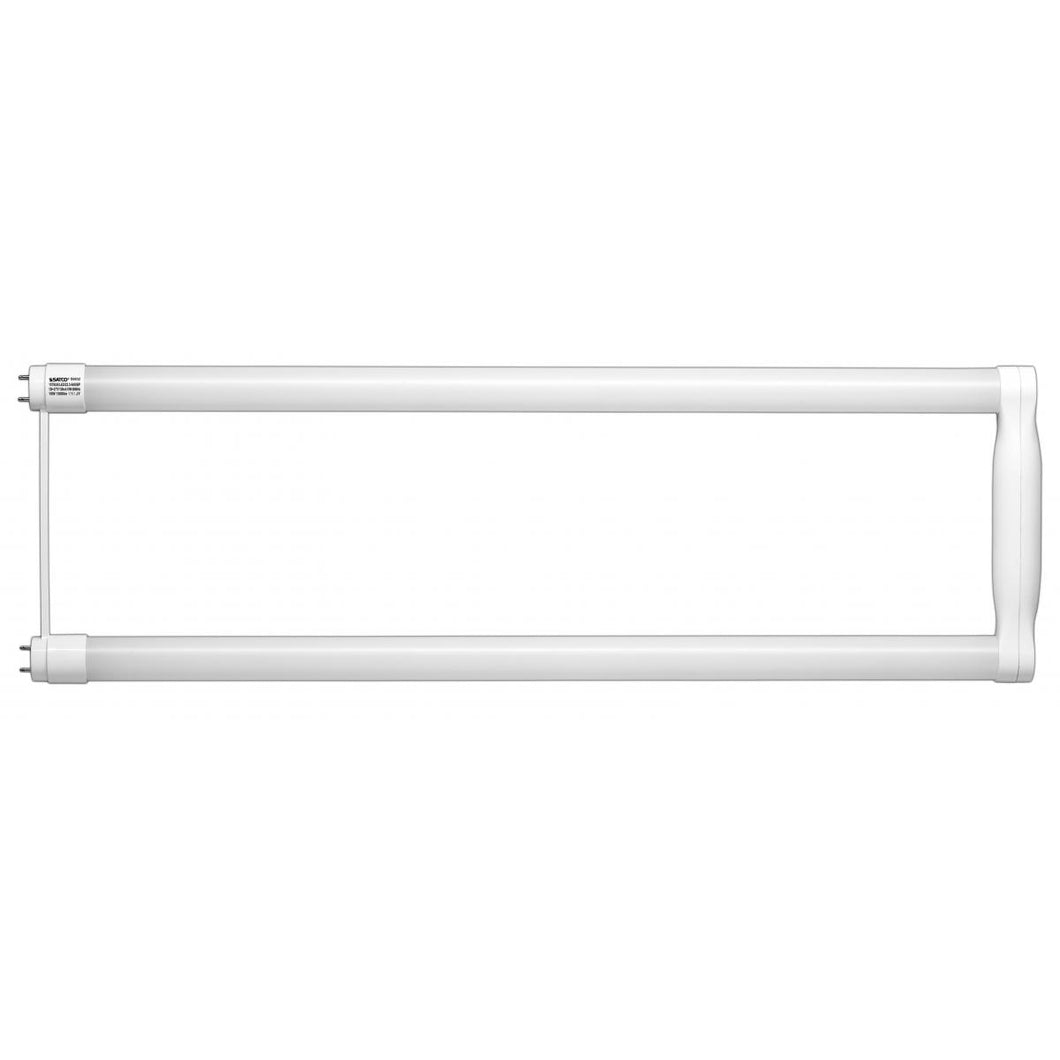

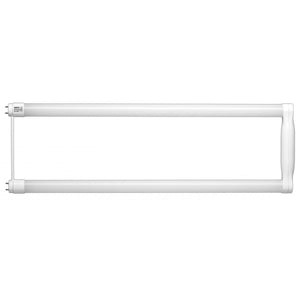

15W T8 U-Bend LED; Medium bi-pin base; 4000K; 50000 Average rated hours; 1800 Lumens; Type B; Ballast Bypass; Single Ended Wiring
General
| Status | Active |
| Watts | 15 |
| Volts | 120V-277V |
| Ballast Type | Type B |
| Shape | T8 |
| Base | Medium Bi Pin |
| ANSI Base | G13 |
| Nominal Length | 22.5 |
| Finish | Frosted |
| CCT (Kelvin) | 4000 |
| Temperature | Cool White |
| CRI | 82 |
| Lumens | 1800 |
| Beam Spread | 220 |
| Dimmable | Non-Dimmable |
| Hours Rated | 50000 |
| Lamp Type | U-Bend |
| Technology | LED |
Electrical
| Watts | 15 |
| Volts | 120V-277V |
| Ballasting Requirements | Ballast Bypass |
| Ballast Type | Type B |
| Operating Frequency | 50/60 Hz |
| CCT (Kelvin) | 4000 |
| Temperature | Cool White |
| CRI | 82 |
| Lumens | 1800 |
| Beam Spread | 220 |
| Dimmable | Non-Dimmable |
| Dimming Type | N/A |
| Power Factor | 0.9 |
| Hours Rated | 50000 |
| Operating Temperature | -20C (-4F) to a maximum of +45C (+113F) |
Physical
| MOL | 22.5 |
| MOD | 1 |
| Nominal Length | 22.5 |
| Leg Spacing | 6 |
| Shape | T8 |
| Base | Medium Bi Pin |
| ANSI Base | G13 |
| Finish | Frosted |
Additional Information
| Warranty | 5 Year Limited - T8 LED Bulbs - Ballast Bypass |
Compliance
| Safety Listing | cULus Classified |
| Location Rating | Damp |
| Energy Star | No |
| DLC Approved | Yes |
| DLC ID | PH3SCEZH |
| CEC Status | Lawful for sale in California |
| RoHS Compliant | Yes |
| NSF Approved | Yes - Approved |
Packaging
| Each UPC | 045923099328 |
| Each Quantity | 1 |
| Each Length (in.) | 23.20 |
| Each Width (in.) | 7.50 |
| Each Height (in.) | 1.40 |
| Each Weight (lb.) | 0.75 |
| Each Cube (CuFt.) | 0.1367 |
| Pack Type | Box |
| Inner Quantity | 0 |
| Inner Length (in.) | 0.00 |
| Inner Width (in.) | 0.00 |
| Inner Height (in.) | 0.00 |
| Inner Weight (lb.) | 0.00 |
| Inner Cube (CuFt.) | 0.0000 |
| Case UPC | 10045923099325 |
| Case Quantity | 12 |
| Case Length (in.) | 24.00 |
| Case Width (in.) | 15.80 |
| Case Height (in.) | 9.50 |
| Case Weight (lb.) | 10.80 |
| Case Cube (CuFt.) | 2.0215 |
