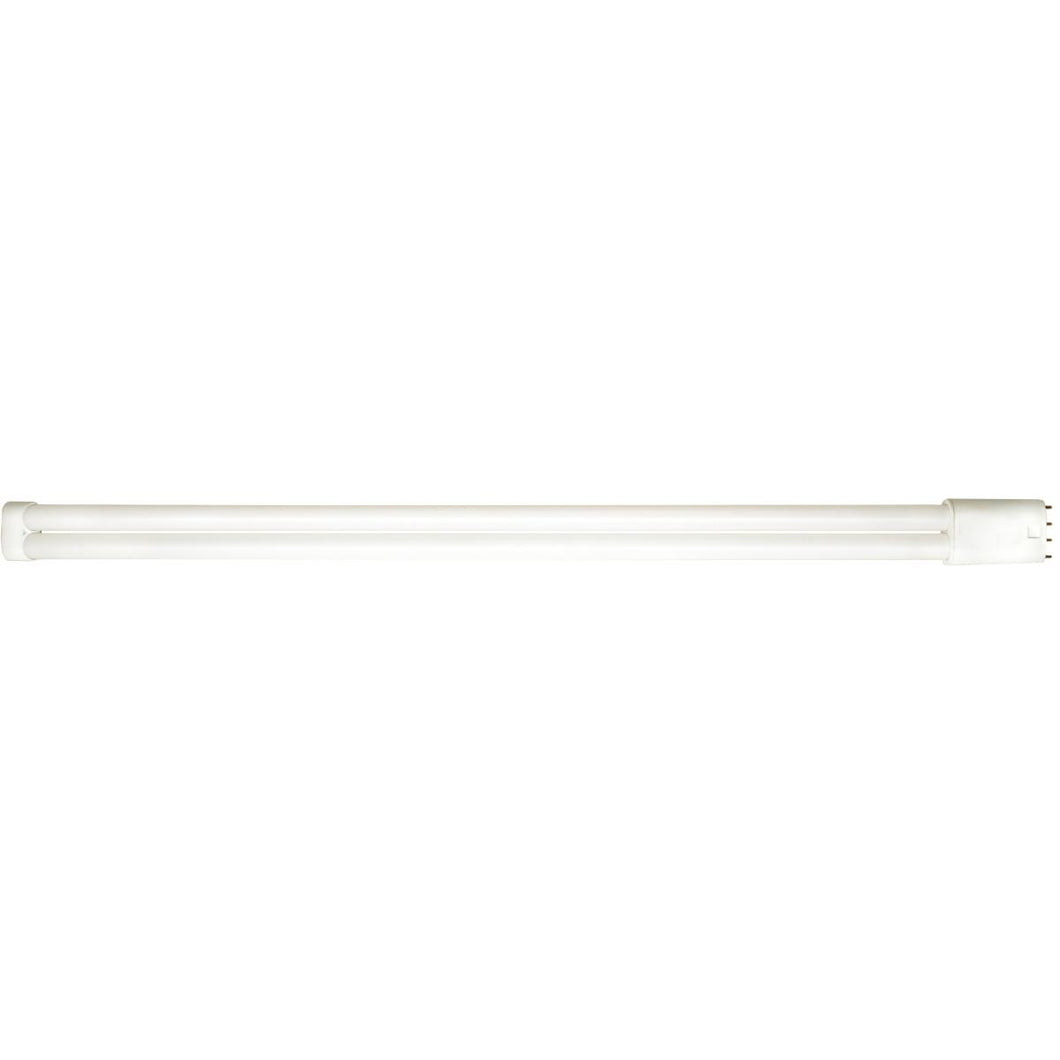

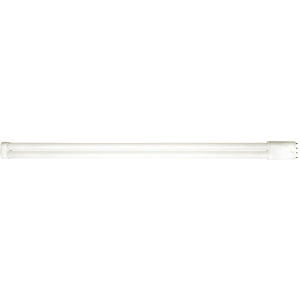

23W PLL LED ballast bypass; 2G11 base; 2800 Lumens; 120-277V; 4000K; Type B; Ballast Bypass
General
| Status | Active |
| Watts | 23 |
| Fluorescent Equivalent | 40 |
| Volts | 120V-277V |
| Ballast Type | Type B |
| Shape | T5 |
| Base | 2G11 |
| ANSI Base | 2G11 |
| Finish | Frosted White |
| CCT (Kelvin) | 4000 |
| Temperature | Cool White |
| CRI | 82 |
| Lumens | 2800 |
| Beam Spread | 360 |
| Dimmable | Non-Dimmable |
| Hours Rated | 50000 |
| Lamp Type | PL |
| Burning Position | Universal |
| Technology | LED |
Electrical
| Watts | 23 |
| Fluorescent Equivalent | 40 |
| Volts | 120V-277V |
| Ballasting Requirements | Ballast Bypass |
| Ballast Type | Type B |
| CCT (Kelvin) | 4000 |
| Temperature | Cool White |
| CRI | 82 |
| Lumens | 2800 |
| Beam Spread | 360 |
| Dimmable | Non-Dimmable |
| Dimming Type | N/A |
| Power Factor | 0.9 |
| Hours Rated | 50000 |
| Burning Position | Universal |
| Operating Temperature | -20C (-4F) to a maximum of +45C (+113F) |
Physical
| MOL | 22.5 |
| MOD | 0.63 |
| Shape | T5 |
| Base | 2G11 |
| ANSI Base | 2G11 |
| Finish | Frosted White |
| Housing Color | White |
Additional Information
| Enclosure Rating | Enclosed Rated Lamp |
| Warranty | 5 Year Limited - 10 hr per day |
Compliance
| Safety Listing | cULus |
| Location Rating | Damp |
| Energy Star | No |
| DLC Approved | Yes |
| DLC ID | PL2ISZU5GTZN |
| CEC Status | Lawful for sale in California |
| RoHS Compliant | Yes |
| SDS Sheet | LED Lamp |
Packaging
| Each UPC | 045923099519 |
| Each Quantity | 1 |
| Each Length (in.) | 23.00 |
| Each Width (in.) | 1.80 |
| Each Height (in.) | 1.10 |
| Each Weight (lb.) | 0.45 |
| Each Cube (CuFt.) | 0.0256 |
| Pack Type | Box |
| Inner Quantity | 0 |
| Inner Length (in.) | 0.00 |
| Inner Width (in.) | 0.00 |
| Inner Height (in.) | 0.00 |
| Inner Weight (lb.) | 0.00 |
| Inner Cube (CuFt.) | 0.0000 |
| Case UPC | 10045923099516 |
| Case Quantity | 10 |
| Case Length (in.) | 23.60 |
| Case Width (in.) | 4.30 |
| Case Height (in.) | 6.70 |
| Case Weight (lb.) | 5.10 |
| Case Cube (CuFt.) | 0.3815 |
